Debugger always stops inside "SysTick_Config()

Follow

Johannes Hofmann

• November 16, 2022 14:41

Hi,

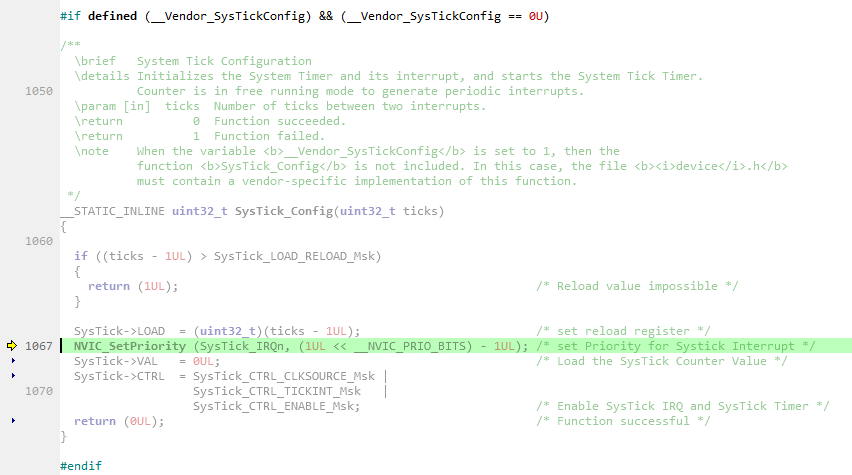

In my main I call "SysTick_Config(2000)" and when I enter debug mode and want to step over this command, the debugger goes into the function.
Also the function is greyed out though "__Vendor_SysTickConfig" is defined and set to 0 in another header file.
Do you have any ideas, how I can suppress that and make the code to appear like it's defined?

Thanks and regards

Hannes

0

•

  Michael Johnson

  • November 16, 2022 14:52

  It's been inlined into the main function.

  The debugger creates a call stack entry - but it doesn't support step out or step over.

  1

  Comment actions Permalink
•

  Johannes Hofmann

  • November 21, 2022 23:04

  Thanks Michael, that's a very good insight for me I didn't know yet.

  So is it INLINE because the function is located in a header file or why is the statement used?

  0
